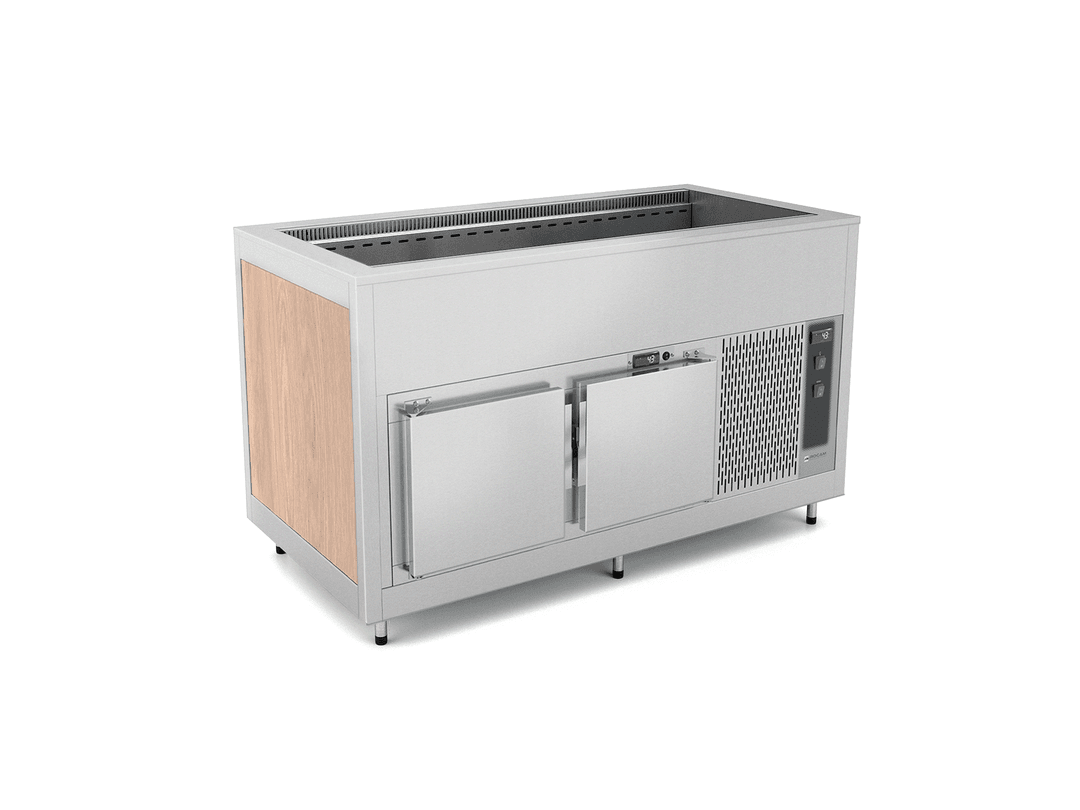

OMNIA RV/SF
Ventilated refrigeration and cold reserve
Buffet with fan-assisted refrigeration, stainless steel structure available with standard wooden paneling or overcoating (SPP), stainless steel paneling (SST) or powder coated paneling (CST). Equipped by adjustable feet that can be masked by a skirting board. Refrigeration by means of a compressor unit with R290 gas, with a pre-programmed defrost system. Height adjustable feet with skirting board. It is equipped with a 26cm deep stainless steel well with rounded edges with a drain cock. The well temperature is set by digital thermostat. Each module can be equipped by different types of lighting, sneezeguard, tray holders among with many other optionals.
Measure / Capacity
Panelling
laminated wood
STANDARD
stainless steel
SST
Powder coated steel
CST
LAN
LAR
LBE
LCP
LBV
LER
LGR
LIM
LNE
LNI
LNO
LNW
LOC
LOM
LRS
LSK
LSV
LTC
LWE
LWS
LZA
RAL
RAL 5015
RAL 9005
RAL 7037
RAL 9006
RAL 1015
RAL 8017
SST
N/A
Lighting
Led
Sneezeguard
G1
G2
G3
G6
Tray holders
3
3-SST
3-TUB
9
9-SST
9-TUB
9C
9C-SST
9C-TUB
6
7
8
Various
Z
ZH
PZH
SCAM
5
HZ6
TUBE
45CUT
DIST
GN
UK
Lower compartment doors
4
POMN
Body
R75
10
Technical data
|
Technical data |
OMNIA 3 RV |
OMNIA 4 RV |
OMNIA 5 RV |
|
GN capacity |
3 |
4 |
5 |
|
External dimensions (A1 x D x H) mm |
1171 x 747 x 910 |
1496 x 747 x 910 |
1821 x 747 x 910 |
|
Well dimensions (A2 x D x H) mm |
1017 x 593 x 260 |
1342 x 593 x 260 |
1667 x 593 x 260 |
|
Lower compartment dimensions (Lv x Hv) mm |
608 x 444 |
933 x 444 |
1258 x 444 |
|
Net Weight (kg) |
90 |
100 |
110 |
|
Packing size (cm) |
135 x 92 x 120/185h |
155 x 92 x 120/185h |
185 x 92 x 120/185h |
|
Operating temperature (°C) |
+2 / +10 |
+2 / +10 |
+2 / +10 |
|
Refrigerant gas |
R290 |
R290 |
R290 |
|
Power consumption (Watt) |
330 |
330 |
330 |
|
Supply voltage at 50 Hz (V) |
230 V |
230 V |
230 V |
* Model weight without options
