- Omnia OMNIA RV-E

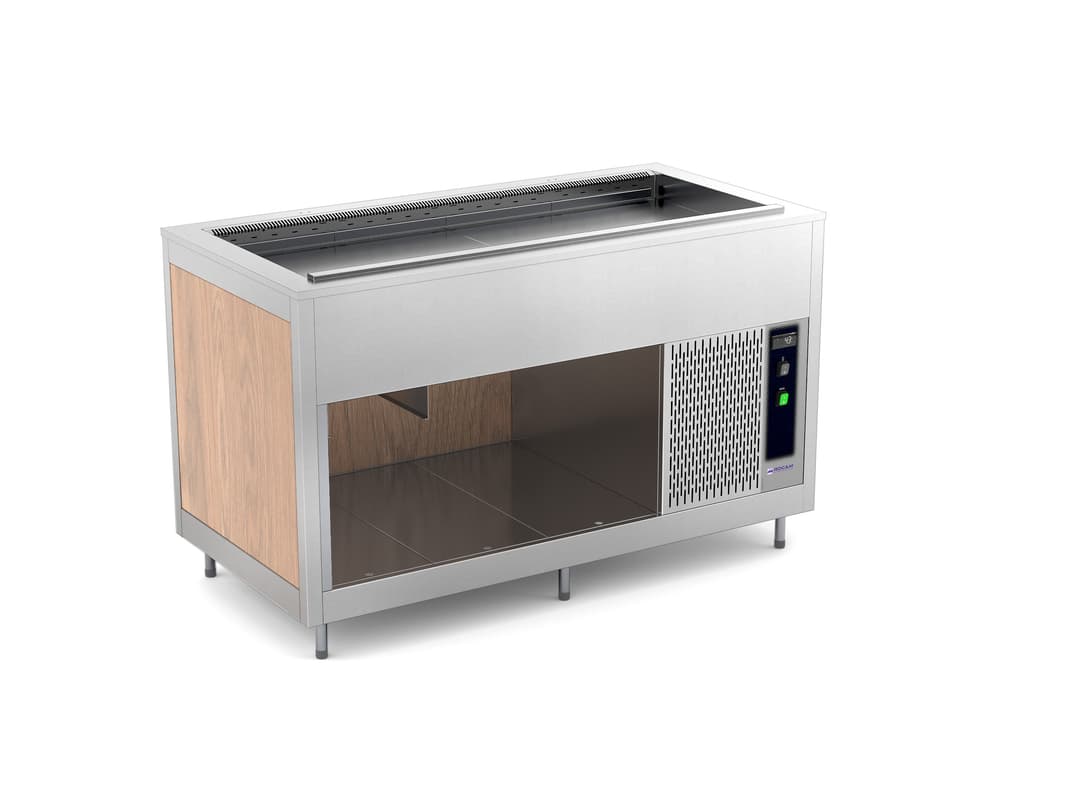

OMNIA RV-E
Fan-assisted refrigeration with evaporator
Blown-air refrigerated buffet with evaporator, stainless steel structure available with standard wooden paneling or overcoating (SPP), stainless steel paneling (SST) or powder coated paneling (CST). Equipped by adjustable feet that can be masked by a skirting board. The well is equipped by vents that create an air blade that improves cooling efficiency and optimizes consumption. To achieve maximum refrigeration performance, the well should be completely closed by the G6 showcase. Bottom panels adjustable in height to allow the insertion of GN pans (not included) max 100mm high. The bottom panels are fully removable to simplify cleaning and maintenance; they can also have different degrees of inclination to better diplay food.
Measure / Capacity
Panelling
laminated wood
STANDARD
stainless steel
SST
Powder coated steel
CST
Overpaneling
SPP
LOM
LBE
LBV
LWS
LNE
LNW
LAN
LNO
LWE
LAR
LCP
LGR
LTC
LSV
LER
LIM
LNI
LOC
LSK
LZA
LRS
RAL
SST
N/A
Lighting
Led
Sneezeguard
G1
G2
G3
G6
Tray holders
3
3-SST
3-TUB
9
9-SST
9-TUB
9C
9C-SST
9C-TUB
6
8
7
Various
Z
ZH
PZH
CAM
SCAM
ADS
HZ6
TUBE
45CUT
DIST
GN
UK
Lower compartment doors
4
POMN
4 CST
4 SST
Body
R75
10
Technical data
Technical data |
OMNIA 3 |
OMNIA 4 |
OMNIA 5 |
GN capacity |
3 |
4 |
5 |
External dimensions (A1 x D x H) mm |
1171 x 747 x 910 |
1496 x 747 x 910 |
1821 x 747 x 910 |
Well dimensions (A2 x D x H) mm |
1017 x 593 x 260 |
1342 x 593 x 260 |
1667 x 593 x 260 |
Smaller compartment dimensions (Lv x Hv) mm |
608 x 444 |
933 x 444 |
1258 x 444 |
Net Weight (kg)* |
100 |
110 |
120 |
Packing size (cm) |
135 x 92 x 120/185h |
155 x 92 x 120/185h |
185 x 92 x 120/185h |
Operating temperature (°C) |
+2 / +10 |
+2 / +10 |
+2 / +10 |
Refrigerant gas |
R290 |
R290 |
R290 |
Power consumption (Watt) |
348 |
358 |
367 |
Supply voltage at 50 Hz (V) |
230 V |
230 V |
230 V |
* Model weight without optional
