OMNIA R/SF
Static refrigeration and cold reserve

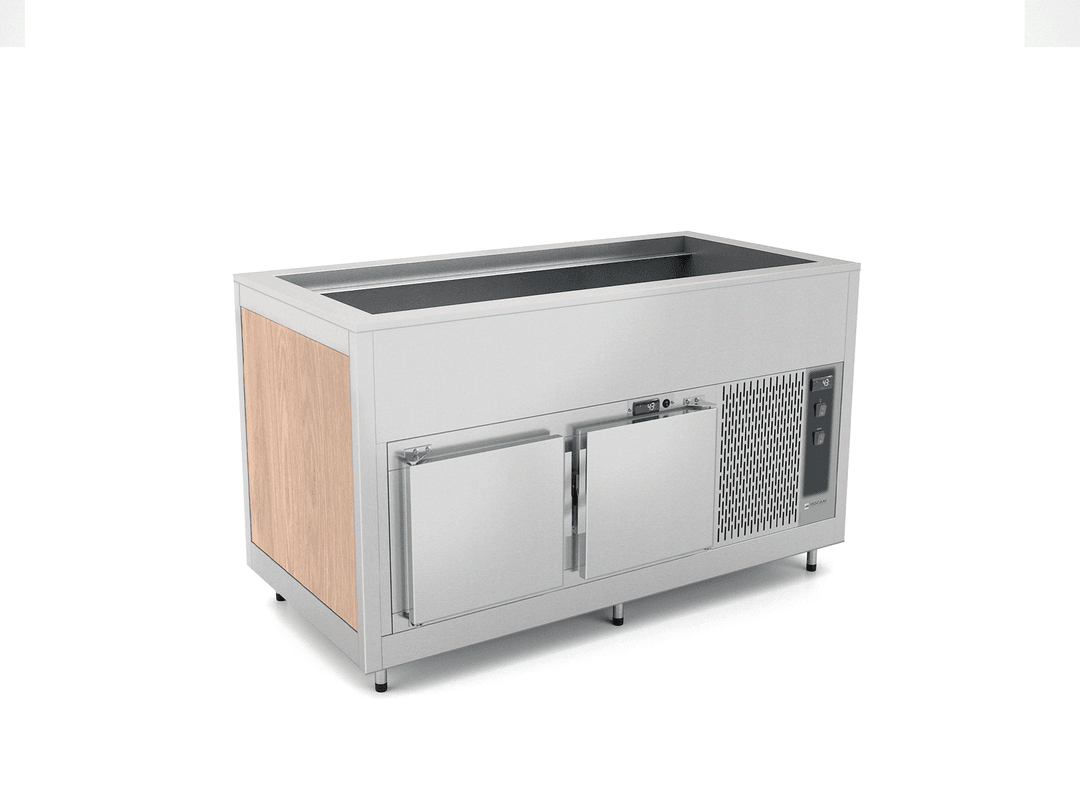

Static refrigerated buffet with refrigerated lower compartment. The well and the lower compartment are equipped with independent refrigeration thanks to 2 separate compressors and regulated by 2 electronic thermostats. The cooling units are powered by R290 gas. Stainless steel tank deep 26cm with rounded edges and drain tap. The buffet has a stainless steel structure and laminated wood panels as standard or with over-panelling (SPP). The panels are also available in stainless steel (SST) or painted metal sheet (CST). Equipped with adjustable feet in height that can be hidden by a skirting mask. The buffet can be completed with different types of lighting and many other options.
Measure / Capacity
Panelling
laminated wood
STANDARD
stainless steel
SST
Powder coated steel
CST
LOM
LBE
LWS
LBV
LNE
LNO
LWE
LNW
LAN
LAR
LCP
LGR
LTC
LSV
LER
LIM
LNI
LOC
LSK
LZA
LRS
RAL
SST
N/A
Lighting
Led
Sneezeguard
G2
G1
G6
G3
Tray holders
3
3-SST
3-TUB
9
9-SST
9-TUB
9C
9C-SST
9C-TUB
6
7
8
Various
45CUT
Lower compartment doors
4 CST
4
4 SST
Technical data
|
Technical data |
OMNIA 3 R/SF |
OMNIA 4 R/SF |
OMNIA 5 R/SF |
|
GN capacity |
3 |
4 |
5 |
|
External dimensions (A1 x D x H) mm |
1171 x 747 x 910 |
1496 x 747 x 910 |
1821 x 747 x 910 |
|
Tank dimensions (A2 x D x H) mm |
1017 x 593 x 260 |
1342 x 593 x 260 |
1667 x 593 x 260 |
|
Smaller compartment dimensions (Lv x Hv) mm |
608 x 444 |
933 x 444 |
1258 x 444 |
|
Net Weight (kg)* |
90 |
100 |
110 |
|
Packing size (cm) |
135 x 92 x 120/185h |
155 x 92 x 120/185h |
185 x 92 x 120/185h |
|
Operating temperature (°C) |
+2 / +10 |
+2 / +10 |
+2 / +10 |
|
Lower operating room temperature (°C) |
+2 / +10 |
+2 / +10 |
+2 / +10 |
|
Refrigerant gas |
R290 |
R290 |
R290 |
|
Power consumption (Watt) |
330 + 220 |
330 + 220 |
330 + 220 |
|
Supply voltage at 50 Hz (V) |
230 V |
230 V |
230 V |
* Model weight without optional
