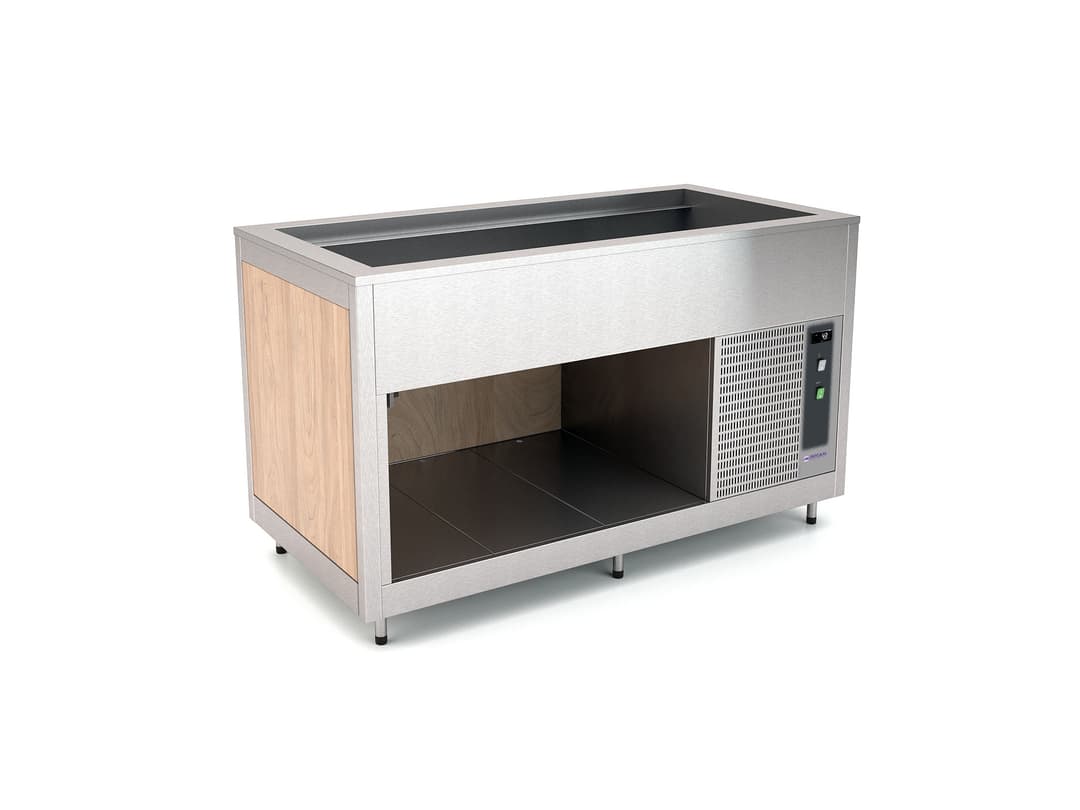

OMNIA R

Static refrigeration

Buffet statically refrigerated with stainless steel structure available with standard wooden paneling or overcoating (SPP), stainless steel paneling (SST) or powder coated paneling (CST). Equipped by adjustable feet that can be masked by a skirting board. Refrigeration by means of a compressor unit with R290 gas. Height adjustable feet. It is equipped with a 26cm deep stainless steel well with rounded edges with a drain cock. The well temperature is regulated by digital thermostat. Each module can be confi gurated with different types of lighting, sneezeguard, tray holders among with many other optionals.

Measure / Capacity
Panelling
‌
    Download
    Technical drawing Brochure OMNIA ITA Brochure OMNIA ENG
    Technical data

    Technical data

    OMNIA 2 R

    OMNIA 3 R

    OMNIA 4 R

    OMNIA 5 R

    OMNIA 6 R

    GN capacity

    2

    3

    4

    5

    6

    External dimensions (A1 x P x H) mm

    846 x 747 x 910

    1171 x 747 x 910

    1496 x 747 x 910

    1821 x 747 x 910

    21 46 x 747 x 910

    Well dimensions (A2 x P x H) mm

    692 x 593 x 260

    1017 x 593 x 260

    1342 x 593 x 260

    1667 x 593 x 260

    1992 x 593 x 260

    Lower compartment dimensions (Lv x Hv) mm

    283 x 444

    608 x 444

    933 x 444

    1258 x 444

    1583 x 444

    Net weight (Kg)

    80

    90

    100

    110

    120

    Packaging dimensions (cm)

    120 x 100 x 120/185h

    135 x 92 x 120/185h

    155 x 92 x 120/185h

    185 x 92 x 120/185h

    225 x 100 x 120/185h

    Operating temperature(°C)

    +2 / +10

    +2 / +10

    +2 / +10

    +2 / +10

    +2 / +10

    Refrigerant gas

    R290

    R290

    R290

    R290

    R290

    Power consumption (Watt)

    330*

    330*

    330*

    330*

    330*

    Supply voltage at 50 Hz (V)

    230 V

    230 V

    230 V

    230 V

    230 V

    * Model weight without optional
