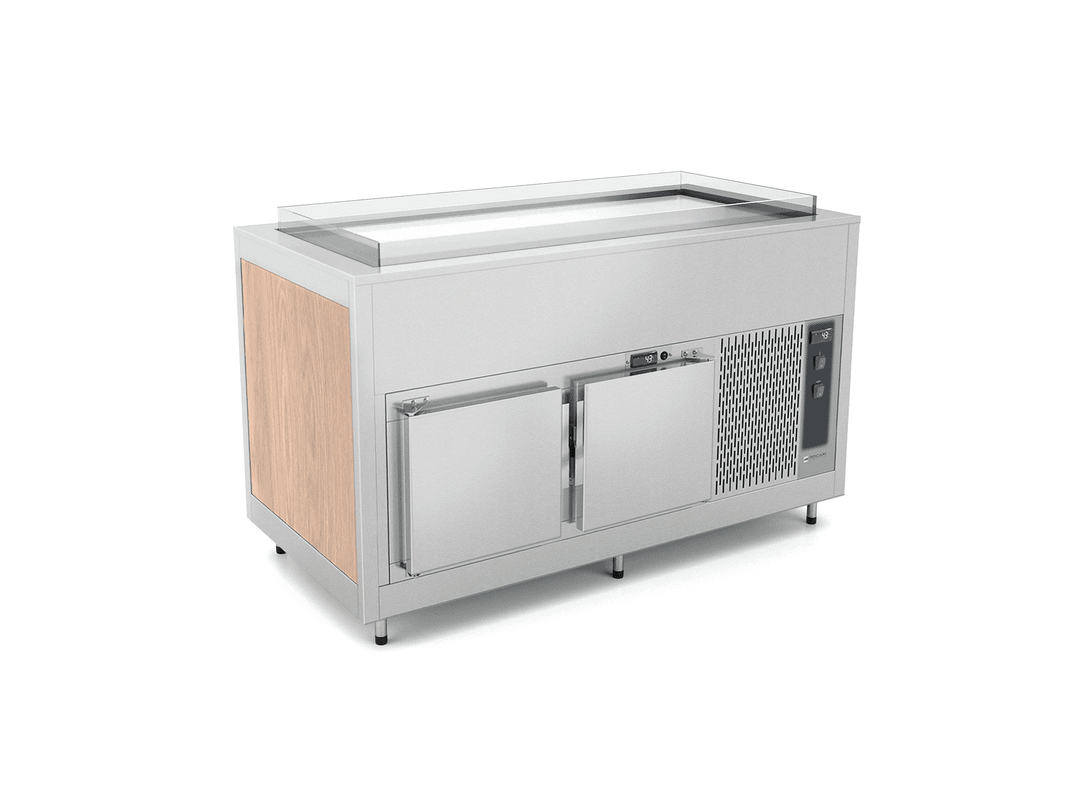

OMNIA PR/SF
Refrigerated top in betacryl and cold reserve
Refrigerated module with Betacryl® countertop and refrigerated lower compartment. The cold on the top is contained for 3 cm from the stainless steel edge and from the 8cm Plexyglass® frame placed on the top and removable for displaying of bulky plates and trays. Static refrigeration for the countertop and fan-assisted refrigeration for the lower compartment. Both are powered by 2 compressor groups feeded by R290 gas. The 2 temperatures are set by 2 independent digital thermostats. Dimensions in 3-4-5 GN1/1. Also available in versions with stainless steel panels (SST), painted sheet metal (CST) and laminated wood superstructure (SPP).
Measure / Capacity
Panelling
laminated wood
STANDARD
stainless steel
SST
Powder coated steel
CST
LAR
LAN
LBE
LBV
LCP
LER
LGR
LIM
LNE
LNI
LNO
LNW
LOC
LOM
LRS
LSK
LSV
LTC
LWE
LWS
LZA
RAL
SST
N/A
Lighting
Led
Sneezeguard
G1
G2
G3
G6
Tray holders
3
3-SST
3-TUB
9
9-TUB
9-SST
9C
9C-TUB
9C-SST
6
7
8
Various
Z
ZH
PZH
ADS
HZ6
TUBE
45CUT
UK
Lower compartment doors
4
POMN
4 CST
4 SST
Body
R75
10
Technical data
|
Technical data |
OMNIA 3 PR/SF |
OMNIA 4 PR/SF |
OMNIA 5 PR/SF |
|
GN capacity |
3 |
4 |
5 |
|
External dimensions (A1 x D x H) mm |
1171 x 747 x 910 |
1496 x 747 x 910 |
1821 x 747 x 910 |
|
Well dimensions (A2 x D x H) mm |
1017 x 593 x 260 |
1342 x 593 x 260 |
1667 x 593 x 260 |
|
Lower compartment dimensions (Lv x Hv) mm |
608 x 444 |
933 x 444 |
1258 x 444 |
|
Net Weight (kg) |
80 |
90 |
100 |
|
Packing size (cm) |
135 x 92 x 120/185h |
155 x 92 x 120/185h |
185 x 92 x 120/185h |
|
Operating temperature (°C) |
+2 / +10 |
+2 / +10 |
+2 / +10 |
|
Lower operating temperature (°C) |
+2 / +10 |
+2 / +10 |
+2 / +10 |
|
Refrigerant gas |
R290 |
R290 |
R290 |
|
Power consumption (Watt) |
352 |
352 |
352 |
|
Supply voltage at 50 Hz (V) |
230 V |
230 V |
230 V |
* Model weight without options
