OMNIA PR-IN/SF

Stainless steel refrigerated top

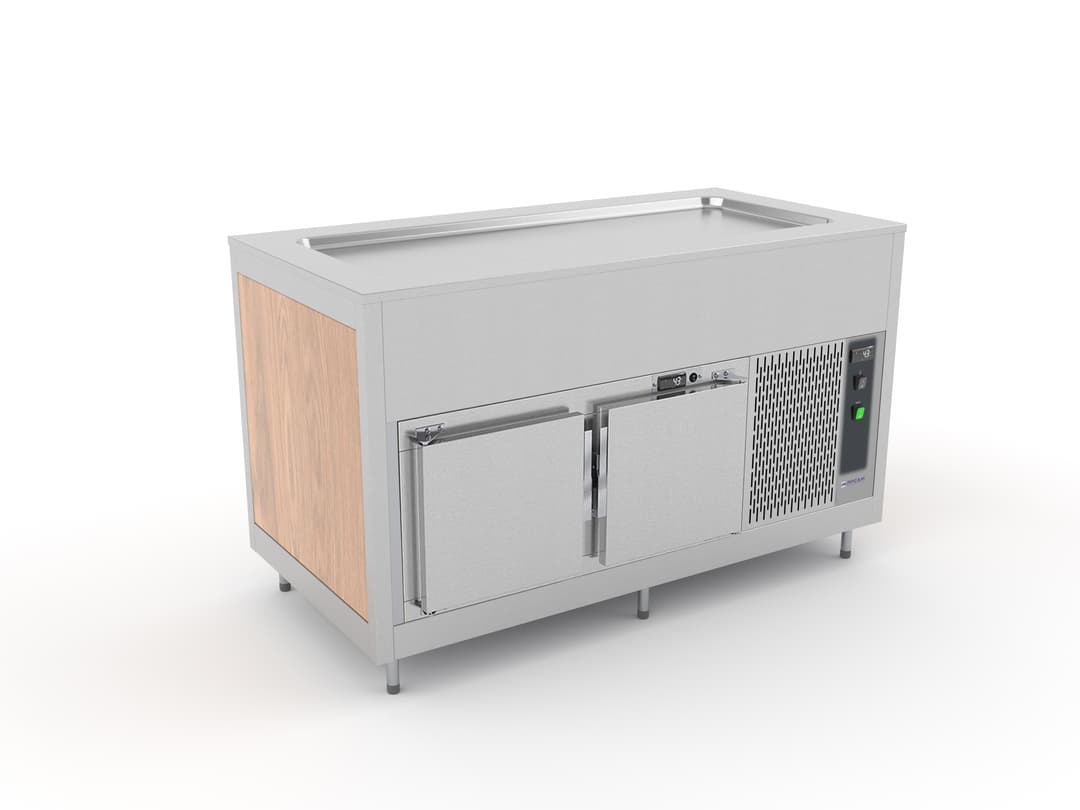

Refrigerated buffet with a moulded stainless steel worktop 30 mm deep and with rounded edges for an easy cleaning. Stainless steel structure available with standard wooden paneling or overcoating (SPP), stainless steel paneling (SST) or powder coated paneling (CST). Equipped by adjustable feet that can be masked by a skirting board. Static refrigeration powered by a compressor unit operating with R290 gas. The temperature is set by a digital thermostat.

Measure / Capacity

Panelling

‌

Download

Technical data

*Technical data*	OMNIA 3 PR/SF	OMNIA 4 PR/SF	OMNIA 5 PR/SF
GN capacity	3	4	5
External dimensions (A1 x D x H) mm	1171 x 747 x 910	1496 x 747 x 910	1821 x 747 x 910
Well dimensions (A2 x D x H) mm	1017 x 593 x 260	1342 x 593 x 260	1667 x 593 x 260
Lower compartment dimensions (Lv x Hv) mm	608 x 444	933 x 444	1258 x 444
Net Weight (kg)	80	90	100
Packing size (cm)	135 x 92 x 120/185h	155 x 92 x 120/185h	185 x 92 x 120/185h
Operating temperature (°C)	+2 / +10	+2 / +10	+2 / +10
Lower operating temperature (°C)	+2 / +10	+2 / +10	+2 / +10
Refrigerant gas	R290	R290	R290
Power consumption (Watt)	352	352	352
Supply voltage at 50 Hz (V)	230 V	230 V	230 V

* Model weight without options
