- Omnia OMNIA DRY/SC
OMNIA DRY/SC
Dry static heating and hot reserve

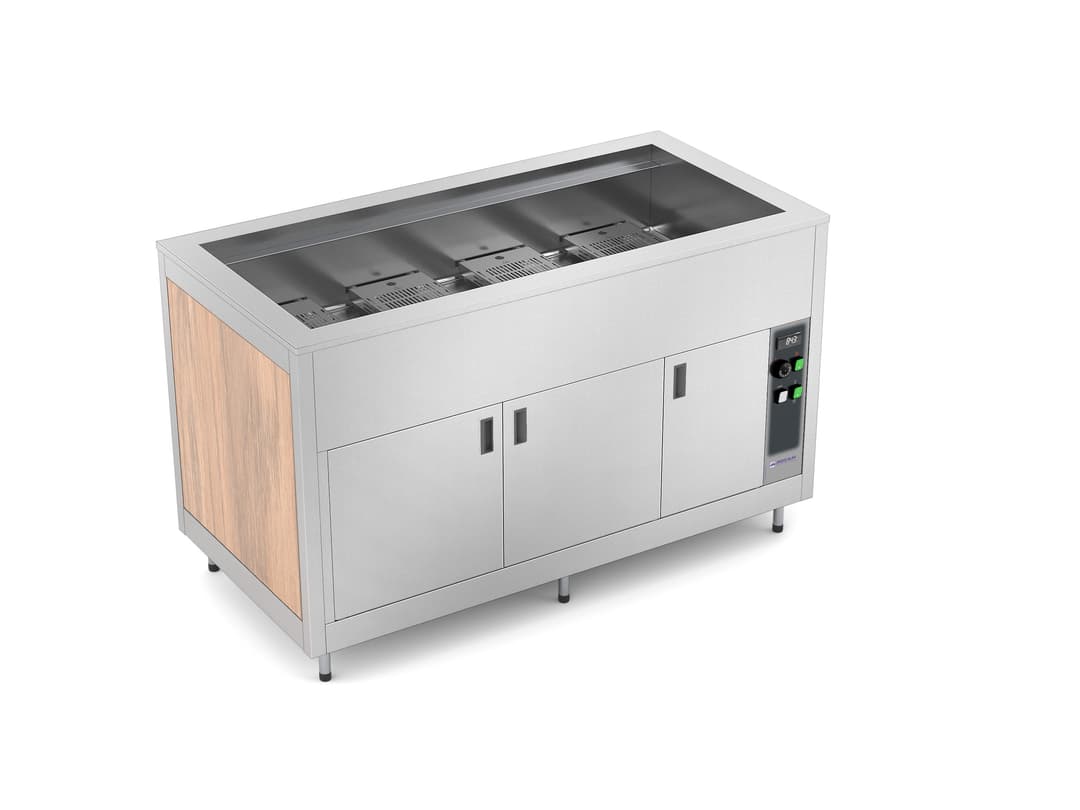

Buffet with static heating through high efficiency in air and armored dry heating element. Fan-assisted heated lower compartment. The temperature is set by a digital thermostat. The well is equipped with side supports for pans, two dividers and by a drain tap to facilitate cleaning operations. Stainless steel structure available with standard wooden paneling or overcoating (SPP), stainless steel paneling (SST) or powder coated paneling (CST). Equipped by adjustable feet that can be masked by a skirting board. Maximum height 150 mm.
Measure / Capacity
Panelling
laminated wood
STANDARD
stainless steel
SST
Powder coated steel
CST
Overpaneling
SPP
LOM
LBE
LBV
LWS
LNE
LNO
LWE
LNW
LAN
LAR
LCP
LGR
LTC
LSV
LER
LIM
LNI
LOC
LSK
LRS
LZA
RAL
SST
N/A
Lighting
Led
Halo
HALOLED
Sneezeguard
G1
G2
G3
G6
Tray holders
3
3-SST
3-TUB
9
9-TUB
9-SST
9C
9C-TUB
9C-SST
6
7
8
Various
PHOT
Z
ZH
PZH
ADS
TUBE
45CUT
DIST
GN
UK
Lower compartment doors
4 CST
4 SST
4
Body
R75
10
Technical data
|
Technical data |
OMNIA 2 BM/SC |
OMNIA 3 BM/SC |
OMNIA 4 BM/SC |
OMNIA 5 BM/SC |
|
GN Capacity |
2 |
3 |
4 |
5 |
|
External dimensions (A1 x P x H) mm |
846 x 747 x 910 |
1171 x 747 x 910 |
1496 x 747 x 910 |
1821 x 747 x 910 |
|
Well dimensions (A2 x P x H) mm |
692 x 593 x 260 |
1017 x 593 x 260 |
1342 x 593 x 260 |
1667 x 593 x 260 |
|
Lower compartment dimensions (Lv x Hv) mm |
608 x 444 |
933 x 444 |
1258 x 444 |
1583 x 444 |
|
Net weight (kg)* |
65 |
75 |
85 |
95 |
|
Packing size (cm) |
120 x 100 x 120/185h |
135 x 92 x 120/185h |
155 x 92 x 120/185h |
185 x 92 x 120/185h |
|
Operating temperature (°C) |
0 / +90 |
0 / +90 |
0 / +90 |
0 / +90 |
|
Lower compartment operating temperature (°C) |
0 / +90 |
0 / +90 |
0 / +90 |
0 / +90 |
|
Power consumption (Watt) |
1826 |
2326 |
2826 |
3326 |
|
Supply voltage at 50 Hz (V) |
230 V |
230 V |
230 V |
230 V |
* Model weight without options
