OMNIA COOK
Neutral module

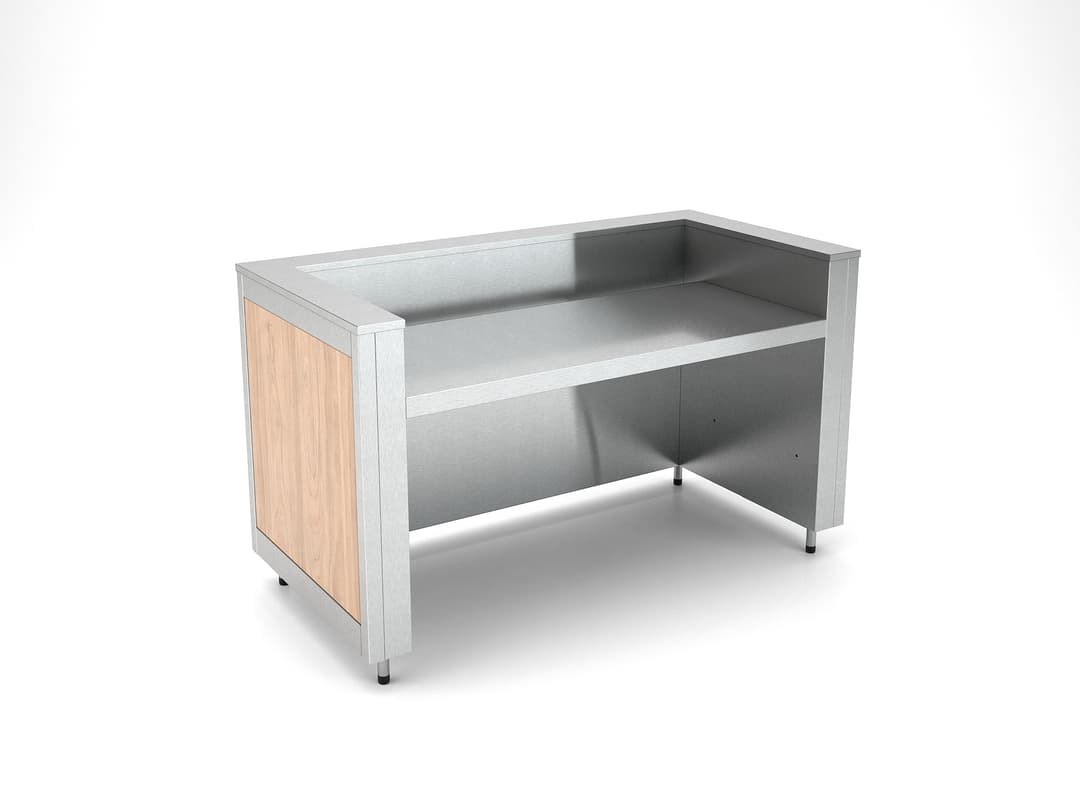

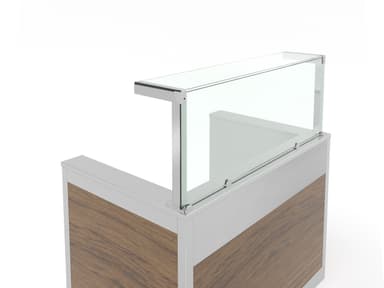

Neutral module equipped with a stainless steel shelf adjustable on 2 heights designed primarily to accommodate induction plates and, more generally, any most common individual cooking appliance. The module can be fitted with the optional G4-vertical sneezeguard in tempered glass for an effective protection of the cooking area. Another optional is an additional loweer shelf that can be useful for storing pans, pots and GN containers with food. The standard module is equipped with feet that can be masked as a plinth, but can also be equipped by wheels, 2 with brake included. The module is NOT electrified, any connection has to be set by the installer, thanks to the available inner, large gap for the passage of cables and gas pipes.
Measure / Capacity
Panelling
laminated wood
STANDARD
stainless steel
SST
Powder coated steel
CST
Overpaneling
SPP
LOM
LBE
LBV
LWS
LNE
LNO
LWE
LAN
LNW
LAR
LCP
LGR
LTC
LSV
LER
LIM
LNI
LOC
LSK
LRS
LZA
RAL
SST
N/A
Sneezeguard
G4
G5
Tray holders
3
3-TUB
3-SST
9
9-TUB
9-SST
9C
9C-TUB
9C-SST
6
7
8
Various
PC/N
Z
ZH
PZH
ADS
45CUT
Body
R75
Technical data
Technical data |
OMNIA 2 |
OMNIA 3 |
OMNIA 4 |
OMNIA 5 |
GN Capacity |
2 |
3 |
4 |
5 |
External dimensions (A1 x P x H) mm |
846 x 747 x 910 |
1171 x 747 x 910 |
1496 x 747 x 910 |
1821 x 747 x 910 |
Internal compartment dimensions (A2 x P x H) mm |
618 x 623 x 910 |
943 x 623 x 910 |
1268 x 623 x 910 |
1583 x 623 x 910 |
Net weight (Kg) |
45 |
55 |
65 |
75 |
Packaging size (cm) |
120 x 100 x 120/185h |
135 x 92 x 120/185h |
155 x 92 x 120/185h |
185 x 92 x 120/185h |
