HAPPY BM
BAIN-MARIE HEATING

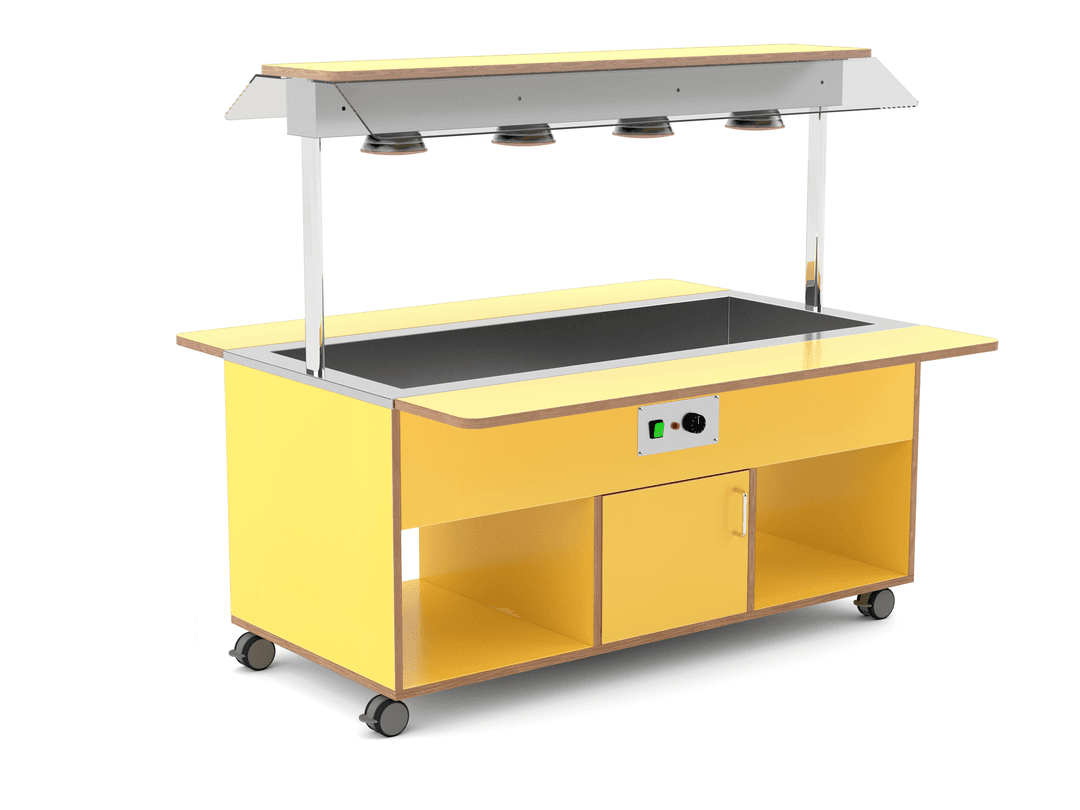

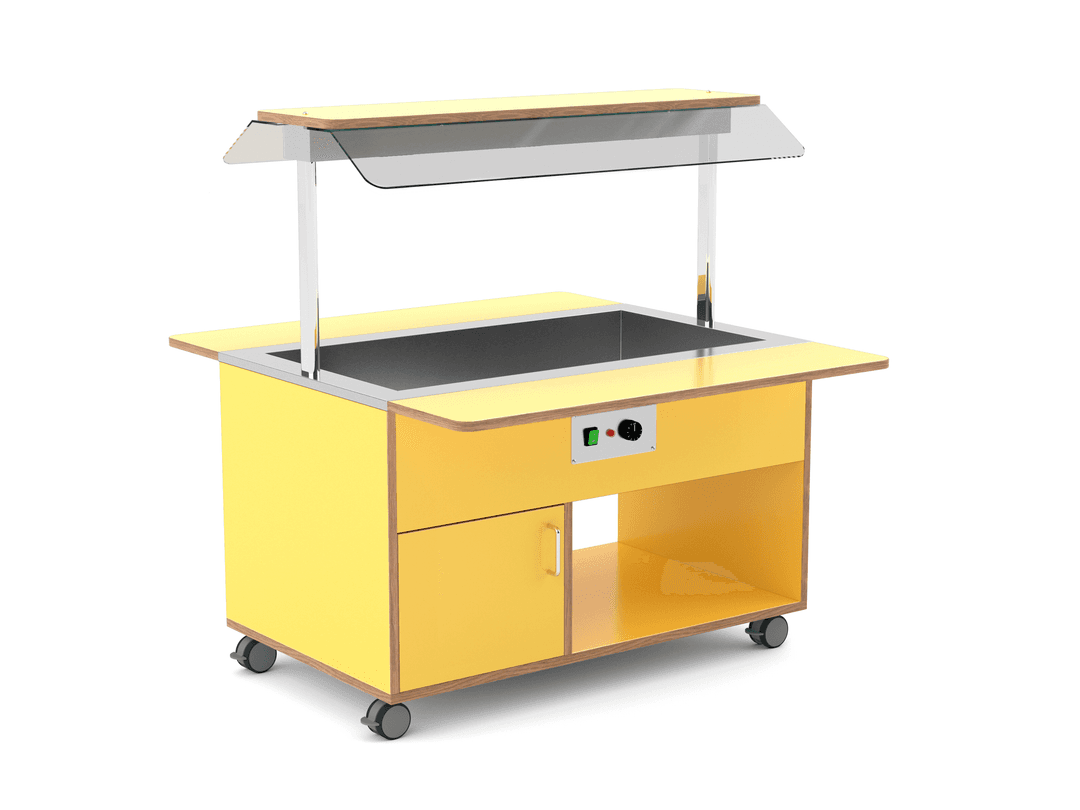

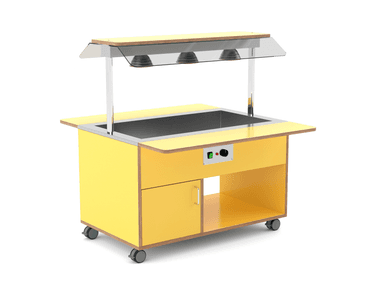

Bainmarie heated buffet for schools and family hotels with LED or infrared upper lighting, structure in laminated wood, available in the colors of our range with contrasting edges. Equipped by fix Plexyglass® sneezeguard and two front/back folding plate-holders as standard. 2 Heights for the worktop: 70cm or 50 cm to make their usage easy for the yougest. Sneezeguards and dish-holders have rounded angles for greater safety. Well 18 cm. deep with drain cock, size 3-4-5-6 GN 1/1.
Heating reguulated by a mechanical thermostat (+30°/+90°C) and operating lighting light. The control panel can be equipped with a security door to protect the buttons (OPT. 11-HA). Base with rounded edges and bumpers. Castors Ø 75 mm, 2 with brake included.
Measure / Capacity
LOM
LBE
LBV
LWS
LNE
LNO
LWE
LAN
LNW
LAR
LCP
LGR
LTC
LSV
LER
LIM
LNI
LOC
LSK
LRS
LZA
N/A
Tray holders
3
3-TUB
3-SST
9
9-TUB
9-SST
9C
9C-SST
9C-TUB
7
8
Various
1
5
GN
DIST
ADS
45CUT
UK
Lower compartment doors
4
Technical data
technical data |
HAPPY 3 |
HAPPY 4 |
HAPPY 5 |
HAPPY 6 |
GN capacity |
3 |
4 |
5 |
6 |
External dimensions (mm) |
1109 x 654 x 1310 |
1434 x 654 x 1310 |
1759 x 654 x 1310 |
2084 x 654 x 1310 |
Net Weight (kg)* |
100 |
112 |
124 |
136 |
Packing size (cm) |
135 x 92 x 185h |
155 x 92 x 185h |
185 x 92 x 185h |
220 x 92 x 185h |
Operating temperature (°C) |
0 / +90 |
0 / +90 |
0 / +90 |
0 / +90 |
Power consumption (Watt) |
2263 / 1950 INFRA |
2270 / 2100 INFRA |
3020 / 2750 INFRA |
3028 / 2900 INFRA |
Supply voltage at 50 Hz (V) |
230 V |
230 V |
230 V |
230 V |
* Model weight without options
