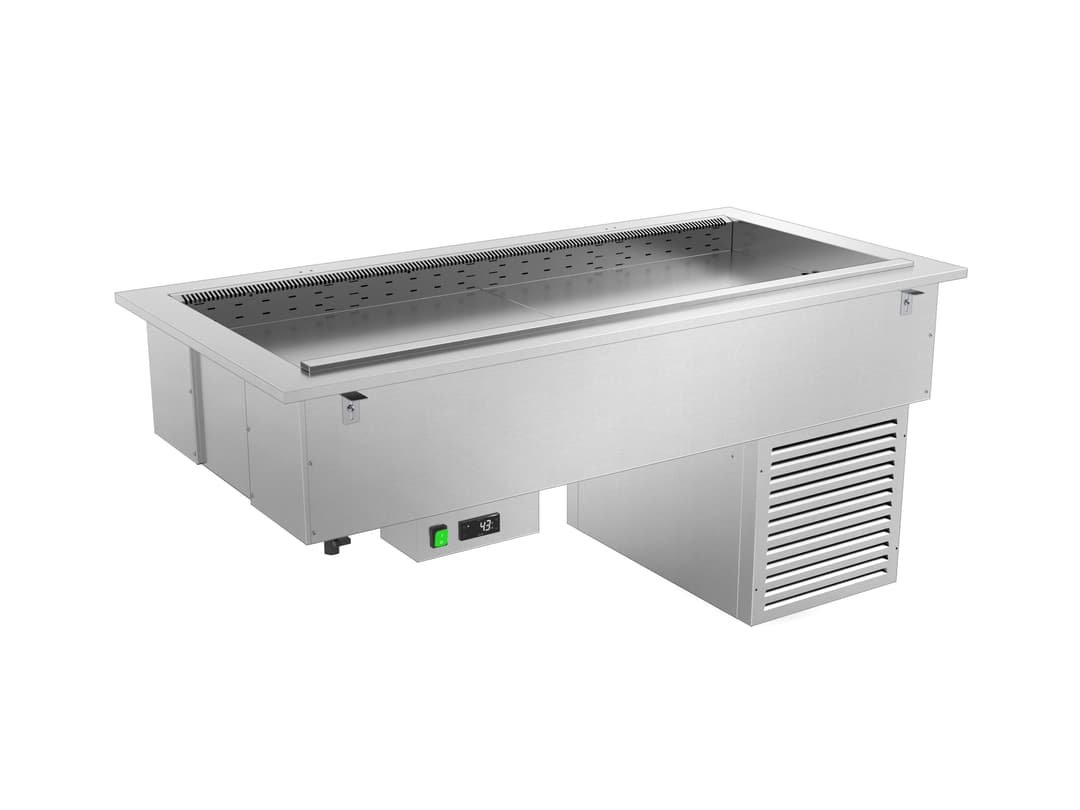

DROP IN RV-E

Ventilated refrigeration with evaporator

Blown-air refrigerated Drop-in with evaporator. The well is equipped by vents that create an air blade that improves cooling efficiency and optimizes consumption. Bottom panels adjustable in height to allow the insertion of GN pans (not included) max 100mm high.  The bottom panels are fully removable to simplify cleaning and maintenance.
Also available in the version without cooling unit and ready for remote connection (/REM).



Measure / Capacity
Variants
‌
    Download
    technical drawing Brochure DROP-IN ITA-ENG Brochure DROP-IN FRE-ENG
    Technical data

    Technical data

    DROP-IN 3

    DROP-IN 4

    DROP-IN 5

    GN capacity

    3

    4

    5

    External dimensions (A1 x D x H) mm

    1171 x 747 x 680

    1496 x 747 x 680

    1821 x 747 x 680

    Well dimensions (A3 x D x H) mm

    1016 x 592 x 260

    1341 x 592 x 260

    1666 x 592 x 260

    Net Weight (kg) *

    3RV-E - 52

    3RV-E/REM - 45

    4RV-E - 56

    4RV-E/REM - 49

    5RV-E - 60

    5RV-E/REM - 53

    Packing size (cm)

    3RV-E - 135 x 92 x 105/160h

    3RV-E/REM - 135 x 92 x 65/120h

    4RV-E - 155 x 92 x 105/160h

    4RV-E/REM - 155 x 92x 65/120h

    5RV-E - 185 x 92 x 105/160h

    5RV-E/REM - 185 x 92 x 65/120h

    Operating temperature (°C)

    +2 / +10

    +2 / +10

    +2 / +10

    Refrigerant gas

    R290

    R290

    R290

    Power consumption (Watt)

    348

    358

    367

    * Model weight without optional
