DROP IN RV

Ventilated refrigeration

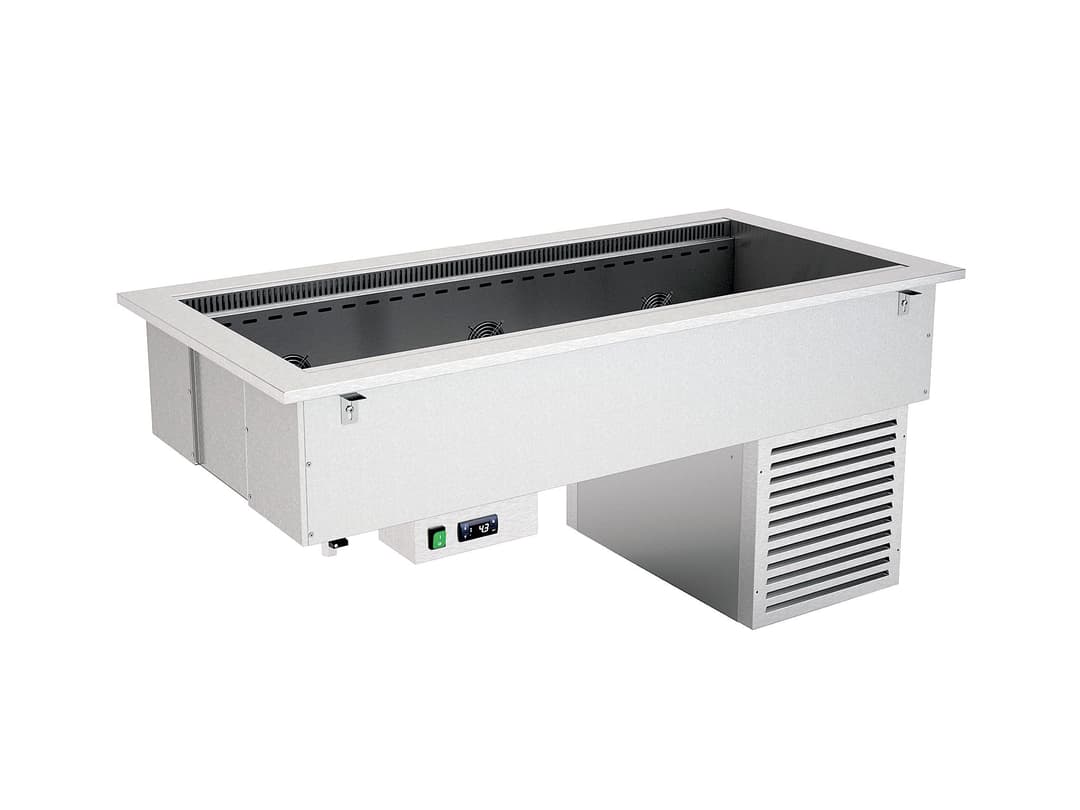

Fan-assisted refrigerated drop-in by means of a compressor unit with R290 gas. Capacity 3-4-5 GN 1/1. 26cm deep stainless steel well with rounded edges with a drain cock. The well temperature is regulated by digital thermostat. The refrigeration is "dry", ventilated by fans placed in the well without evaporator. GN pans not included. Also available in the version without cooling unit and ready for remote connection (/REM).

Measure / Capacity
Variants
‌
    Download
    Technical drawing Brochure DROP-IN ITA-ENG Brochure DROP-IN FRE-ENG
    Technical data

    technical data

    DROP-IN 3

    DROP-IN 4

    DROP-IN 5

    GN capacity

    3

    4

    5

    External dimensions (A1 x D x H) mm

    1171 x 747 x 680

    1496 x 747 x 680

    1821 x 747 x 680

    Well dimensions (A3 x D x H) mm

    1016 x 592 x 260

    1341 x 592 x 260

    1666 x 592 x 260

    Net weight (Kg)

    3RV - 47

    3RV/REM - 40

    4RV - 51

    4RV/REM - 44

    5RV - 55

    5RV/REM - 48

    Packaging size (cm)

    3RV - 135 x 92 x 105/160h

    3RV/REM - 135 x 92 x 65/120h

    4RV - 155 x 92 x 105/160h

    4RV/REM - 155 x 92x 65/120h

    5RV - 185 x 92 x 105/160h

    5RV/REM - 185 x 92 x 65/120h

    Operating temperature (°C)

    +2 / +10

    +2 / +10

    +2 / +10

    Refrigerant gas

    R290

    R290

    R290

    Power consumption (Watt)

    348

    358

    367

    Supply voltage at 50 Hz (V)

    230 V

    230 V

    230 V

    * Peso del modelo sin opción
