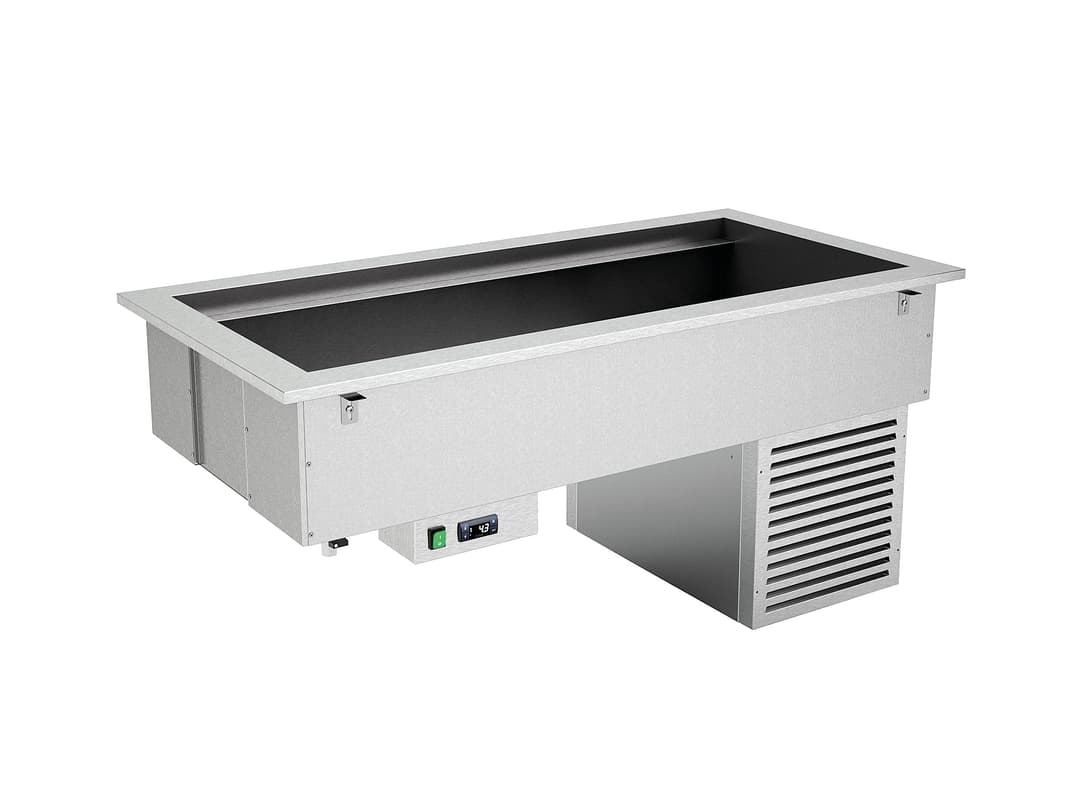

DROP IN R

Static refrigeration

Static refrigerated drop-in by means of a compressor unit with R290 gas. Capacity 2-3-4-5 GN 1/1. 26cm deep stainless steel well with rounded edges with a drain cock. The well temperature is regulated by digital thermostat. GN pans not included. Also available in the version without cooling unit and ready for remote connection (/REM).

Measure / Capacity
Variants
‌
    Download
    Technical drawing Brochure DROP-IN ITA-ENG Brochure DROP-IN FRE-ENG
    Technical data

    Technical data

    DROP-IN 2

    DROP-IN 3

    DROP-IN 4

    DROP-IN 5

    GN Capacity

    2

    3

    4

    5

    External dimensions (A1 x P x H) mm

    846 x 747 x 680

    1171 x 747 x 680

    1496 x 747 x 680

    1821 x 747 x 680

    Well dimensions (A3 x P x H) mm

    691 x 592 x 260

    1016 x 592 x 260

    1341 x 592 x 260

    1666 x 592 x 260

    Net Weight (Kg) *

    2R - 37

    2R/REM - 30

    3R - 43

    3R/REM - 36

    4R - 47

    4R/REM - 40

    5R - 51

    5R/REM - 44

    Packing size (cm)

    2R - 120 x 80 x 105/160 h

    2R/REM - 120 x 80 x 65/120h

    3R - 135 x 92 x 105/160h

    3R/REM - 135 x 92 x 65/120h

    4R - 155 x 92 x 105/160h

    4R/REM - 155 x 92x 65/120h

    5R - 185 x 92 x 105/160h

    5R/REM - 185 x 92 x 65/120h

    Operating temperature (°C)

    +2 / +10

    +2 / +10

    +2 / +10

    +2 / +10

    Refrigerant gas

    R290

    R290

    R290

    R290

    Power consumption (Watt)

    330*

    330*

    330*

    330*

    Power Supplies at 50 Hz (V)

    230 V

    230 V

    230 V

    230 V

    * Model weight without optional
