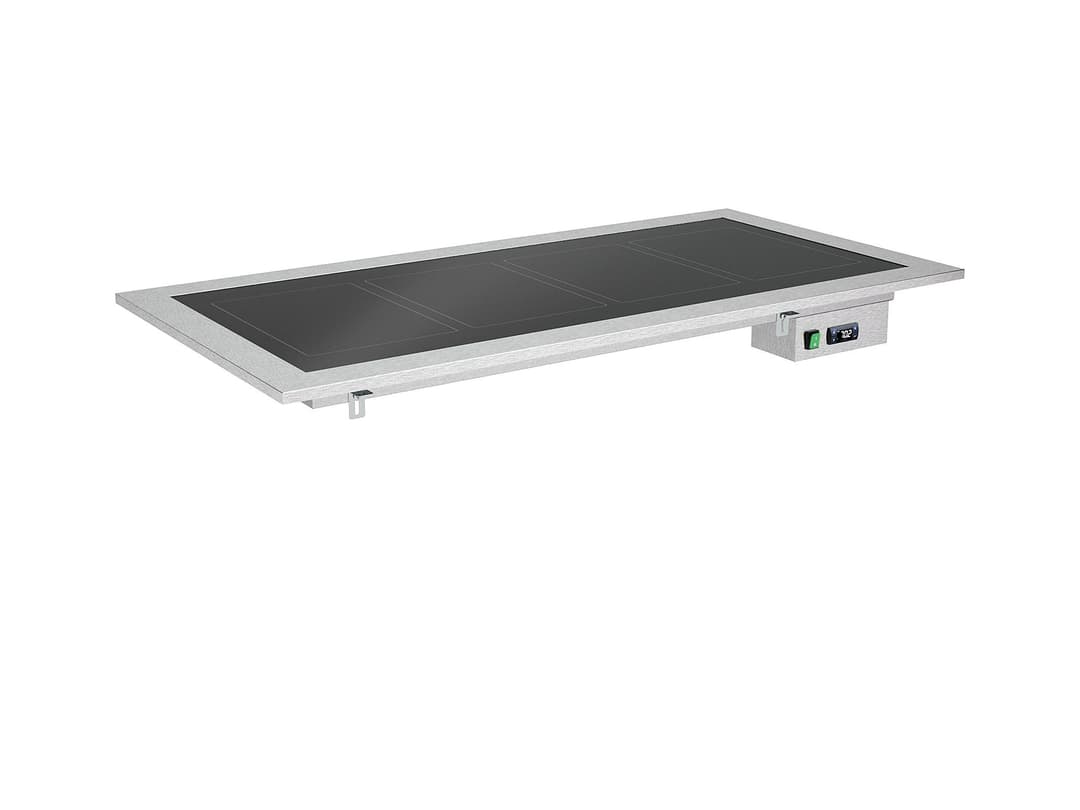

DROP IN PC

Tempered glass heated countertop

Heated drop-in through a countertop made of tempered glass (no induction). Heating of the countertop by adhesive heating elements in silicone. Shelf temperature regulated by a digital thermostat. Heated areas clearly indicated by grooves. Capacity 2-3-4-5-6 GN 1/1.

Measure / Capacity
‌
    Download
    technical drawing
    Technical data

    Technical data

    DROP-IN 2

    DROP-IN 3

    DROP-IN 4

    DROP-IN 5

    DROP-IN 6

    GN capacity

    2

    3

    4

    5

    6

    External dimensions (A1 x D x H) mm

    846 x 747 x 165

    1171 x 747 x 165

    1496 x 747 x 165

    1821 x 747 x 165

    2146 x 747 x 165

    Top dimensions (A3 x P) mm

    691 x 593

    1016 x 593

    1341 x 593

    1666 x 593

    1988 x 593

    Net Weight (kg)

    22

    26

    30

    34

    38

    Packing size (cm)

     120 x 80 x 35/75h

    135 x 92 x 35/75h

    155 x 92 x 35/75h

    185 x 92 x 35/75h

    185 x 92 x 35/75h

    Operating temperature (°C)

    0 / +90

    0 / +90

    0 / +90

    0 / +90

    0 / +90

    Power consumption (Watt)

    1000

    1500

    2000

    2500

    2500

    Supply voltage at 50 Hz (V)

    230 V

    230 V

    230 V

    230 V

    230 V

    * Model weight without optional
