DROP IN DSP

Refrigerated display

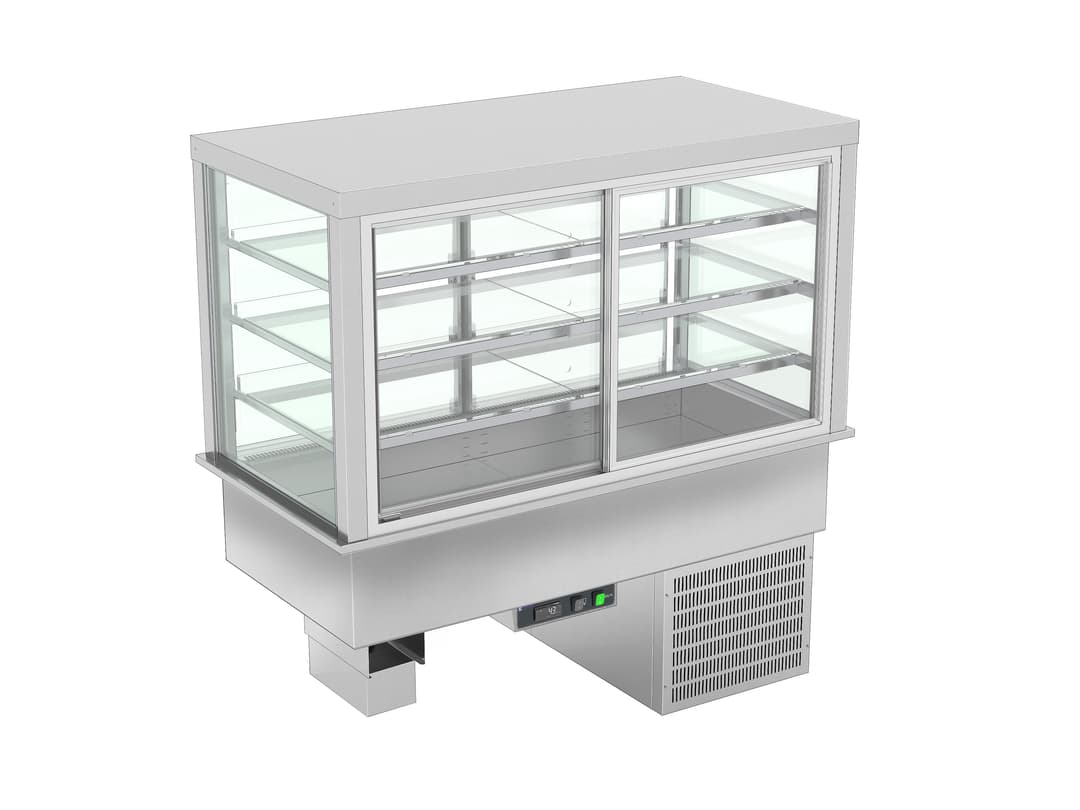

Built-in refrigerated showcase dim. 4GN1/1. Ventilated refrigeration with cold distribution; the temperature is regulated by an electronic thermostat. The well is equipped as standard with a bottom adjustable in height to allow the best exposure of bottles and food. 3 Tempered glass shelves enlighted by 2 vertical LED bars that provide an uniform lighting. The public front can be equipped with front flaps in Plexyglass to reduce the dispersion of cold or completely closed by double-chamber athermal glass. On the operator side there are sliding doors with double glazing with accompanied automatic closing. Equipped with self-evaporating tray to manage the condense water.

Measure / Capacity
Variants

    Technical data

    Technical data

    DROP-IN 4

    External dimensions (mm)

    1496 x 747 x 1481

    Display size (mm)

    1450 x 735 x 802

    Net weight (Kg)

    200

    Packing size (cm)

    155 x 92 x 175h

    Operating temperature (°C)

    +2 / +10

    Refrigerant gas

    R290

    Power consumption (Watt)

    348

    Supply voltage at 50 Hz (V)

    230 V

    * Model weight without optional
