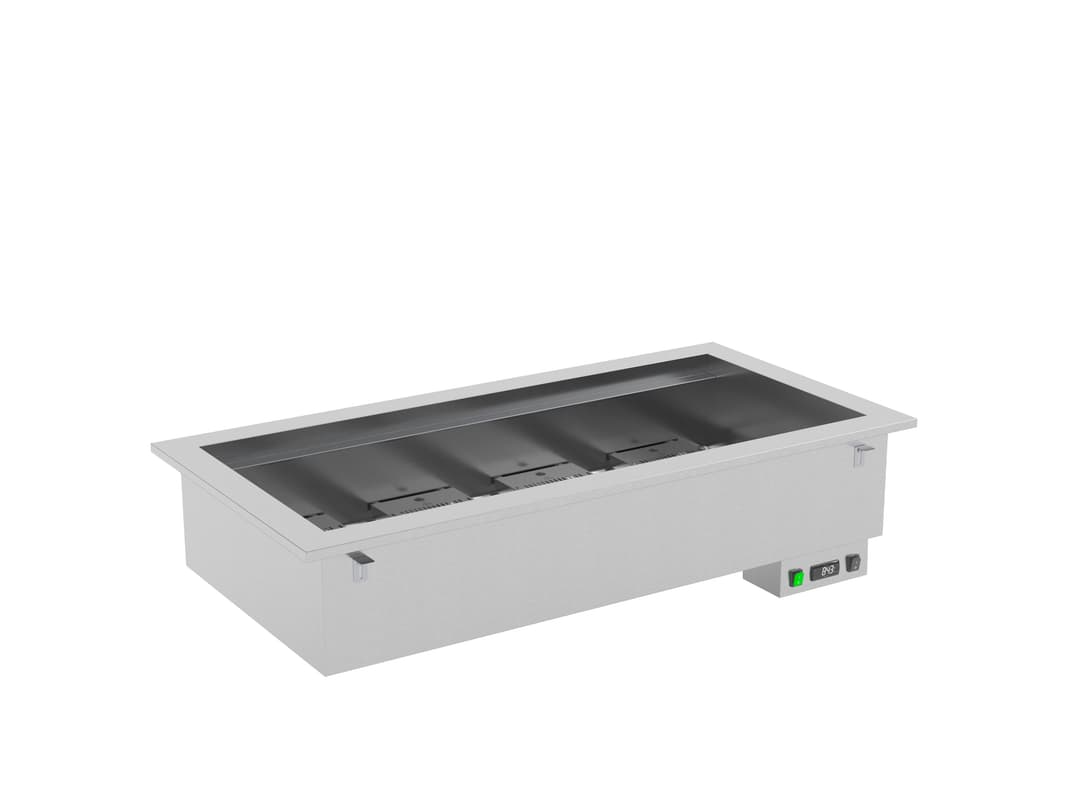

DROP IN DRY

Static dry heating

Drop-in with static heating through high effi ciency in air and armored dry heating element. The temperature is set by a digital thermostat. The well, with capacity from 2 up to 5 GN1/1 h. max 150mm (GN not included), is equipped with side supports for pans, 2 dividers and by a drain tap to facilitate cleaning operations.

Measure / Capacity
‌
    Download
    technical drawing Brochure DROP-IN ITA-ENG Brochure DROP-IN FRE-ENG
    Technical data

    Technical data

    DROP-IN 2

    DROP-IN 3

    DROP-IN 4

    DROP-IN 5

    GN capacity

    2

    3

    4

    5

    External dimensions (A1 x D x H) mm

    846 x 747 x 370

    1171 x 747 x 370

    1496 x 747 x 370

    1821 x 747 x 370

    Well dimensions (A3 x D x H) mm

    691 x 592 x 260

    1016 x 592 x 260

    1341 x 592 x 260

    1666 x 592 x 260

    Net Weight (kg) *

    26

    30

    34

    38

    Packing size (cm)

    120 x 80 x 105/160h

    135 x 92 x 105/160h

    155 x 92 x 105/160h

    185 x 92 x 105/160h

    Operating temperature (°C)

    0 / +90

    0 / +90

    0 / +90

    0 / +90

    Power consumption (Watt)

    1000*

    1500

    2000

    2500

    Supply voltage at 50 Hz (V)

    230 V

    230 V

    230 V

    230 V

    * Model weight without optional
