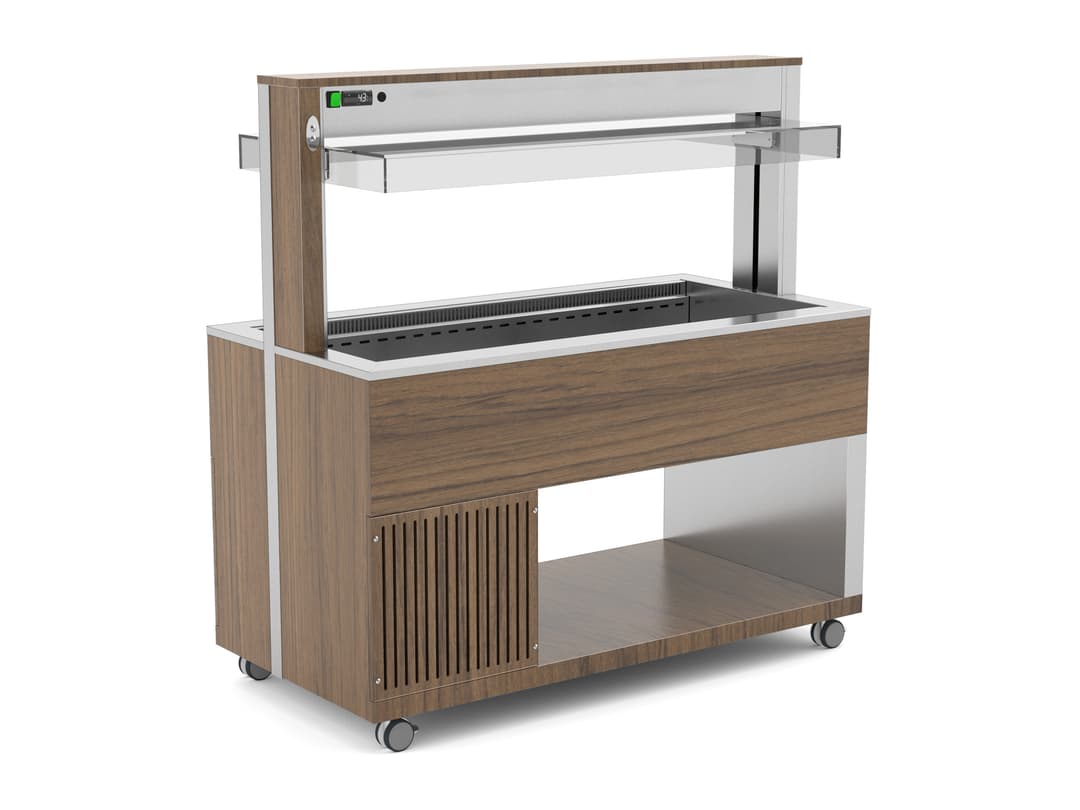

ATHENA RV
Fan-assisted refrigeration
Buffets with laminated wood structure with fan assisted refrigeration. The ventilation grids of the compressor unit are cut directly into the wooden structure for elegant visual continuity.
Upper plexiglass sneezeguard fixed or mobile with electrical system (Athena R/M). Well 26cm deep with drain cock. Static refrigeration of the well, gas R290. Digital thermostat (+2°/+10°) and lighting with LED. Two polyamide castors with brake included. GN pans on request.
Measure / Capacity
Panelling
laminated wood
LAM
LOM
LBE
LWS
LBV
LNE
LNO
LWE
LNW
LAN
LAR
LCP
LGR
LTC
LSV
LER
LIM
LNI
LOC
LSK
LRS
LZA
N/A
Tray holders
3/FO
6/FO
9/FO
3-A
3-TUB
3-SST
9-A
9-STTA
9-TUBA
9C
9C-SSTC
9C-TUBC
6
7
8
Various
5
Z
PZH
HZ6
45CUT
DIST
GN
UK
ADS
Backsplashes/raised shelves
16
Lower compartment doors
4
Body
10
14
15
extension
17
17CH
Technical data
|
Technical data |
ATHENA 3 |
ATHENA 4 |
ATHENA 5 |
|
GN capacity |
3 |
4 |
5 |
|
External dimensions (mm) |
1174 x 747 x 1515 |
1499 x 747 x 1515 |
1824 x 747 x 1515 |
|
Net Weight (kg)* |
197 |
213 |
271 |
|
Packing size (cm) |
135 x 92 x 185h |
155 x 92 x 185h |
185 x 92 x 185h |
|
Operating temperature (°C) |
+2 / +10 |
+2 / +10 |
+2 / +10 |
|
Refrigerant gas |
R290 |
R290 |
R290 |
|
Power consumption (Watt) |
617 |
630 |
642,5 |
|
Supply voltage at 50 Hz (V) |
230 V |
230 V |
230 V |
* Model weight without options
