ATHENA R/W
Wall refrigerated modules

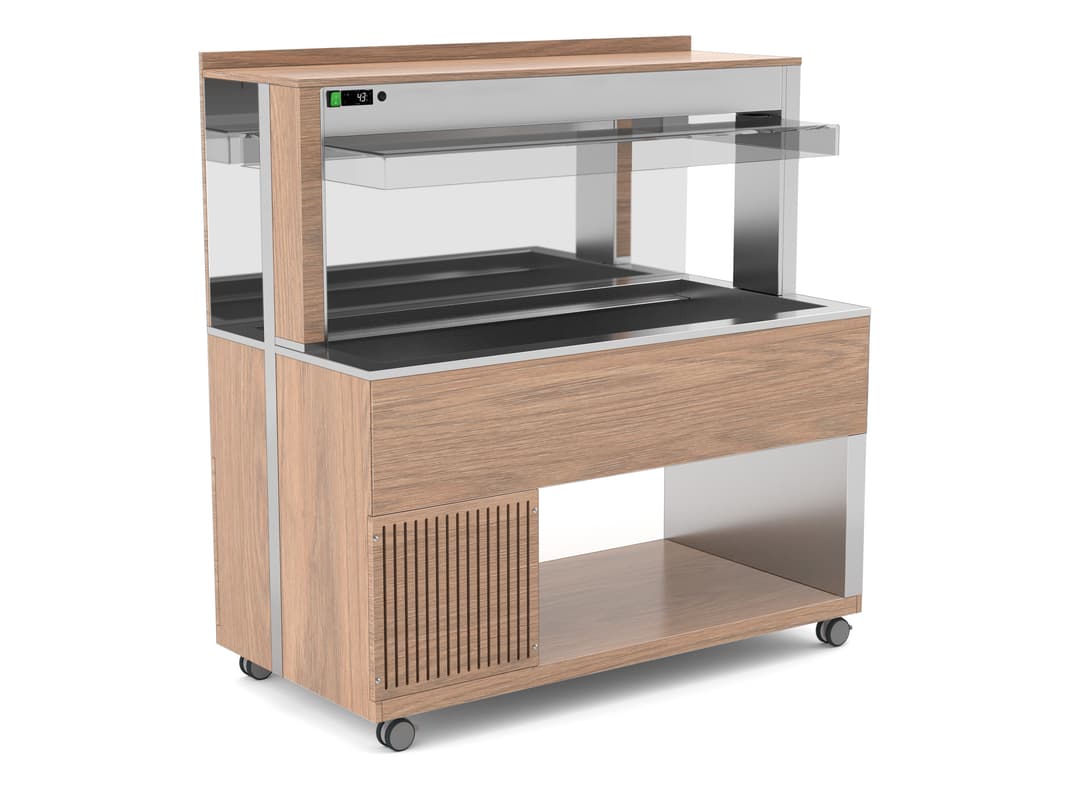

Refrigerated buffet with laminated wood structure and rear mirror to increase visual depth and offer a wider upper shelf. For aesthetic continuity, the compressor unit ventilation grids are cut directly into the wood structure. Capacity modules: 3-4-5-6 GN 1/1 according to model. Electrical lowerable or fix Plexyglas®s sneezeguard (Athena /M). Module with static refrigeration. Digital thermostat (+2°/ +8°) and LED lighting. Two polyamide castors with brake as standard. GN pans not included.
Measure / Capacity
Variants
CALOTTA IN PLEXIGLASS MOBILE
Panelling
laminated wood
LAM
LOM
LBE
LWS
LBV
LNE
LNO
LWE
LAN
LNW
LAR
LCP
LGR
LTC
LSV
LER
LIM
LNI
LOC
LSK
LRS
LZA
N/A
Tray holders
3/FO
6/FO
9/FO
3-A
3-TUB
3-SST
9-A
9-STTA
9-TUBA
9C
9C-SSTC
9C-TUBC
6
7
8
Various
5
PZH
Z
HZ6
45CUT
DIST
GN
UK
ADS
Backsplashes/raised shelves
16
Lower compartment doors
4
Body
10
14
15
extension
17
17CH
Technical data
|
Technical data |
ATHENA 3 |
ATHENA 4 |
ATHENA 5 |
ATHENA 6 |
|
GN Capacity |
3 |
4 |
5 |
6 |
|
External dimensions (mm) |
1174 x 747 x 1515 |
1499 x 747 x 1515 |
1824 x 747 x 1515 |
2149 x 747 x 1515 |
|
Net weight (Kg)* |
149 R - R/M 197 RV/M 151 PR/M |
177 R - R/M 213 RV/M 179 PR/M |
198 R - R/M 271 RV/M 181 PR/M |
219 R - R/M |
|
Packaging size (cm) |
135 x 92 x 185h |
155 x 92 x 185h |
185 x 92 x 185h |
220 x 92 x 185h |
|
Working temperature (°C) |
+2 / +8 |
+2 / +8 |
+2 / +8 |
+2 / +8 |
|
Refrigerant gas |
R290 |
R290 |
R290 |
R290 |
|
Power consumption (Watt) |
358 R - 598 R/M 617 RV/M 598 PR/M |
362 R - 602 R/M 630 RV/M 602 PR/M |
365,5 R - 605,5 R/M 642,5 RV/M 605,5 PR/M |
367 R - 607 R/M |
|
Supply voltage at 50 Hz (V) |
230 V |
230 V |
230 V |
230 V |
* Model weight without options
