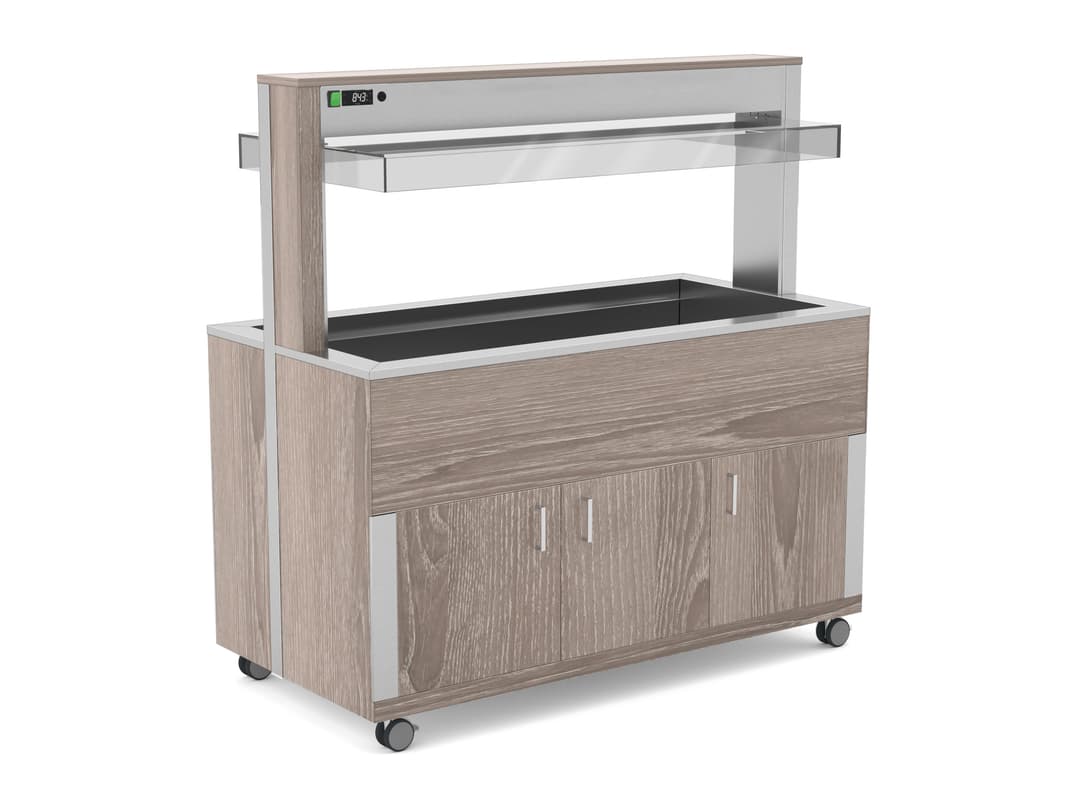

ATHENA BM
Bain-marie heating
Heated buffet with laminated wood structure, also available with halogen lamps. Upper fixed Plexiglass sneezeguard and lighting with LED. AISI 304 stainless steel well, 26 cm. deep, equipped with drain cock. Bain marie heating with heating elements placed underneath the well, temperature controlled by digital thermostat. Two castors with brake Ø 75 mm included.
Measure / Capacity
Panelling
laminated wood
LAM
LOM
LBE
LBV
LWS
LNE
LNO
LWE
LAN
LNW
LAR
LGR
LCP
LTC
LSV
LER
LIM
LNI
LOC
LSK
LRS
LZA
N/A
Tray holders
3/FO
6/FO
9/FO
3-A
3-TUB
3-SST
9-A
9-STTA
9-TUBA
9C
9C-TUBC
9C-SSTC
6
7
8
Various
5
PZH
Z
45CUT
DIST
GN
UK
ADS
Backsplashes/raised shelves
16
Lower compartment doors
4
Body
10
14
15
extension
17
17CH
Download
Technical data
|
Technical data |
ATHENA 3 |
ATHENA 4 |
ATHENA 5 |
ATHENA 6 |
|
GN Capacity |
3 |
4 |
5 |
6 |
|
External dimensions (mm) |
1174 x 747 x 1515 |
1499 x 747 x 1515 |
1824 x 747 x 1515 |
2149 x 747 x 1515 |
|
Net weight(kg)* |
123 |
145 |
167 |
192 |
|
Packaging size (cm) |
135 x 92 x 185h |
155 x 92 x 185h |
185 x 92 x 185h |
220 x 92 x 185h |
|
Operating temperature (°C) |
0 / +90 |
0 / +90 |
0 / +90 |
0 / +90 |
|
Puissance absorbée (Watt) |
2263 |
3016,5 |
3018 |
3250 |
|
Supply voltage at 50 Hz (V) |
230 V |
230 V |
230 V |
230 V |
* Model weight without options
