ATHENA PR/W-M

Betacryl refrigerated countertop

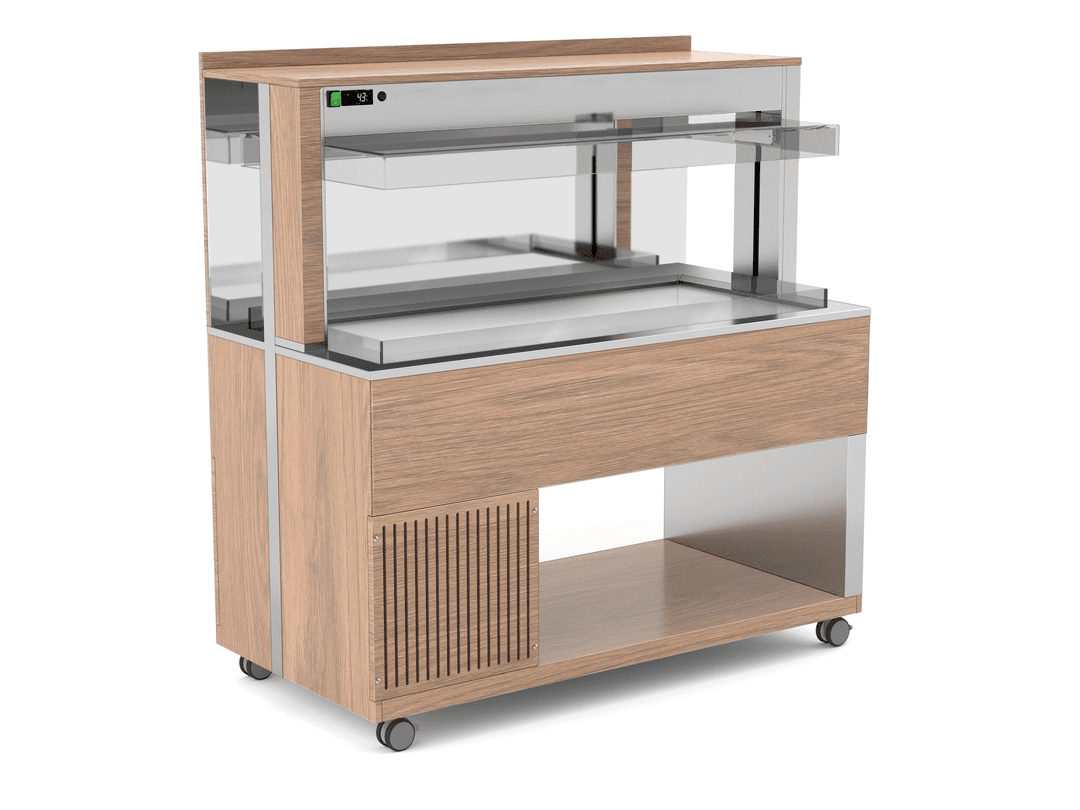

Refrigerated buffet with laminated wood structure and rear mirror to increase visual depth and offer a wider upper shelf. For aesthetic continuity, the compressor unit ventilation grids are cut directly into the wood structure. Capacity modules: 3-4-5-6 GN 1/1 according to model. Electrical lowerable or fix Plexyglas®s sneezeguard (Athena /M). Module with Betacryl® glass counter. Digital thermostat (+2°/ +8°) and LED lighting. Two polyamide castors with brake as standard. GN pans not included.

Measure / Capacity
Panelling
‌
    Download
    technical drawing Brochure ATHENA ITA Brochure ATHENA ENG Brochure ATHENA FRE Brochure ATHENA ESP
    Technical data

    Technical data

    ATHENA 3

    ATHENA 4

    ATHENA 5

    ATHENA 6

    GN Capacity

    3

    4

    5

    6

    External dimensions (mm)

    1174 x 747 x 1515

    1499 x 747 x 1515

    1824 x 747 x 1515

    2149 x 747 x 1515

    Net weight (Kg)*

    149 R - R/M

    197 RV/M

    151 PR/M

    177 R - R/M

    213 RV/M

    179 PR/M

    198 R - R/M

    271 RV/M

    181 PR/M

    219 R - R/M

    Packaging size (cm)

     135 x 92 x 185h

     155 x 92 x 185h

     185 x 92 x 185h

    220 x 92 x 185h

    Working temperature (°C)

    +2 / +8

    +2 / +8

    +2 / +8

    +2 / +8

    Refrigerant gas

    R290

    R290

    R290

    R290

    Power consumption (Watt)

    358 R - 598  R/M

    617 RV/M

    598 PR/M

    362 R - 602 R/M

    630 RV/M

    602 PR/M

    365,5 R - 605,5  R/M

    642,5 RV/M

    605,5 PR/M

    367 R - 607  R/M

    Supply voltage at 50 Hz (V)

    230 V

    230 V

    230 V

    230 V

    * Model weight without options
